مكان المنشأ: | الصين |
---|---|
اسم العلامة التجارية: | KAD |
إصدار الشهادات: | CE |
رقم الموديل: | CDDW |
الحد الأدنى لكمية: | وحدة 1 |
الأسعار: | To be negotiated |
تفاصيل التغليف: | البليت الحديد + فيلم من البلاستيك |
وقت التسليم: | 7 أيام عمل |
شروط الدفع: | T / T ، L / C ، D / A ، D / P ، ويسترن يونيون ، موني جرام |
القدرة على العرض: | 50 وحدة / شهر |
اسم المنتج: | مكعب الراديو الكهربائي | قدرة الحمل: | 1200/1600 |
---|---|---|---|
ارتفاع الرفع: | 1600/200012500/3000 | الطول: | 1770 |
ويديث: | 850 | Battery Capacity: | 2*7012*80 |
تشغيل البطارية: | DC24V | القوة: | 0.75 |
إبراز: | 1 طن من مكبّل الصفائح الكهربائي,1000 كيلوغرام مكبّل الصفائح الكهربائي,3 مترات الكهربائية علبة الحمولة,1000kg Electric Pallet Stacker,3 Meter Electric Pallet Stacker |

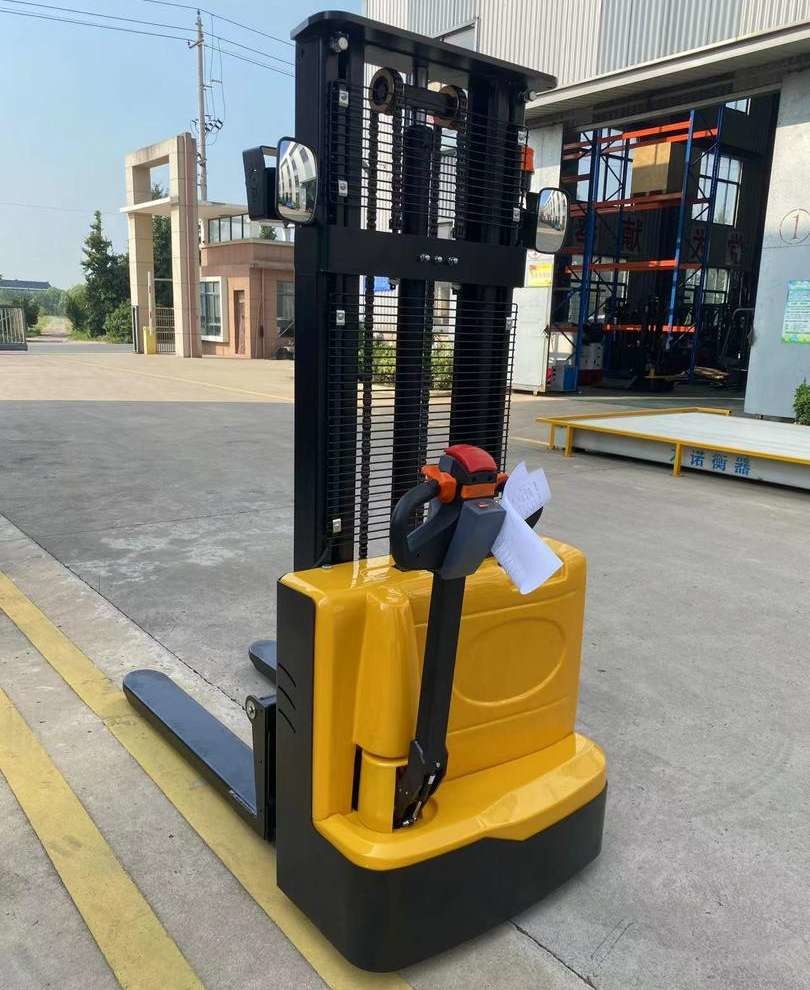

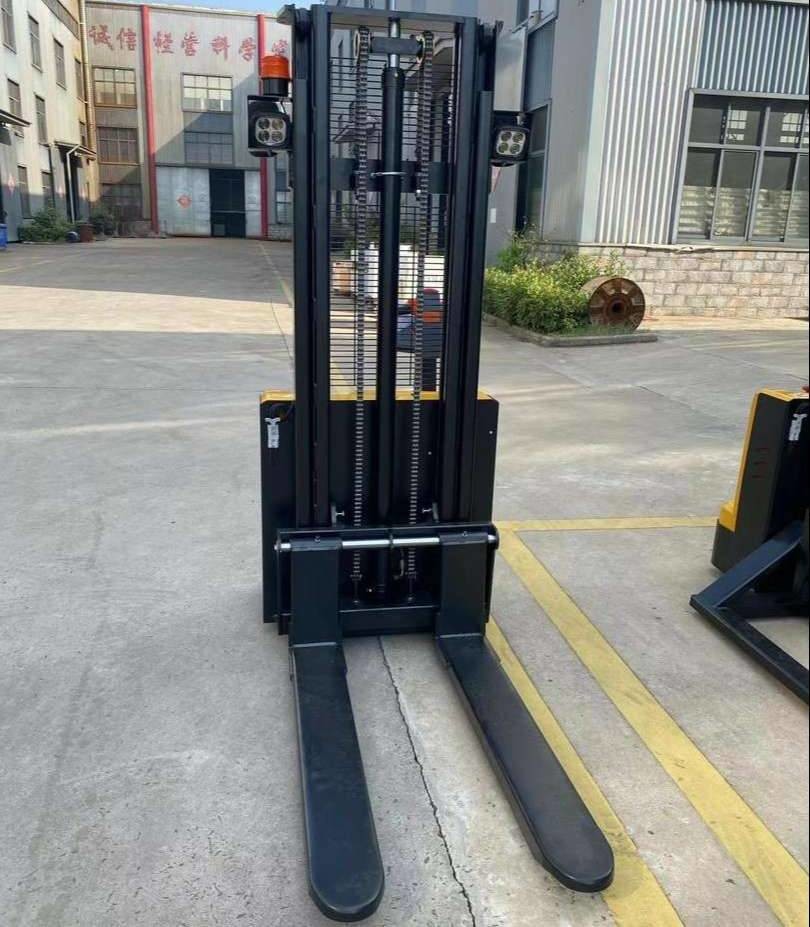

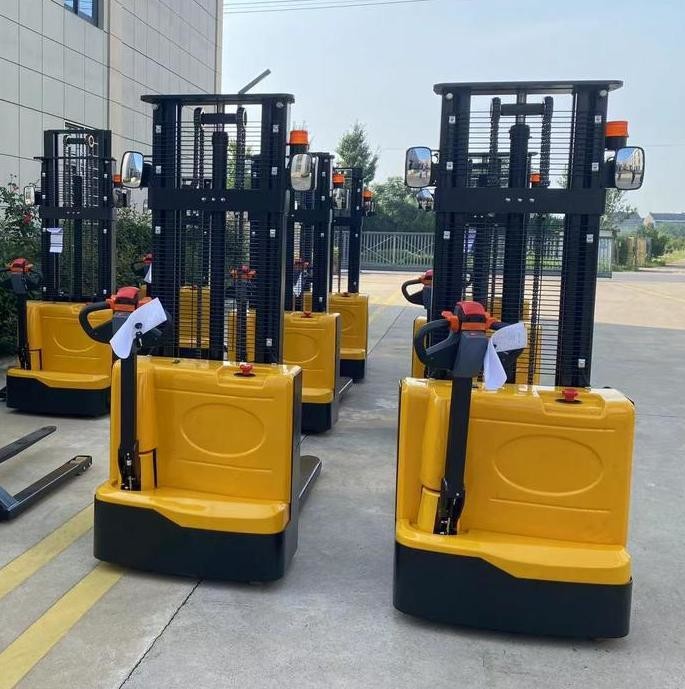

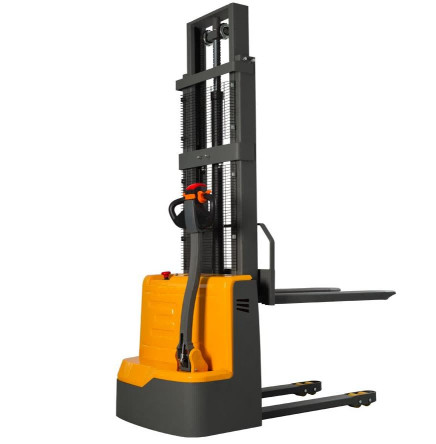

1 Ton 3 Meter 1000kg 3 M Electric Pallet Walkie Stacker Electric Pedestrian Stacker
Product Description
Pedestrian electric stacker cranes are redefining material handling in environments where space is precious and flexibility is crucial. These stacker cranes are designed to improve efficiency and usability, with unique advantages that make them stand out in the fields of warehouse management and logistics.
Walk-behind electric stackers provide a tailored solution for handling goods in specialized and space-constrained environments. Their unique blend of ergonomic design, precision maneuverability, and operational flexibility make them an invaluable tool for modern logistics and warehouse operations.
MODEL
|
|
|
CDDW12 CDDW16
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1200/1600
|
|
Load Center
|
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
CDDW12
|
KG
|
470/485/505/520
|
CDDW16
|
495/510/532/553
|
|||
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L
|
MM
|
1770
|
|
Width
|
B
|
MM
|
850
|
|
Fork Length
|
L1
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B1
|
MM
|
680
|
|
Fork Inside Width
|
B2
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
parameter
|
Driving Speed(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient(Empty/Full Load)
|
|
%
|
7/5
|
|
Brake
|
|
|
Electromagnetic
|
|
Motor
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24*70/24*80Ah
|
Others
|
Noise level DIN 12053
|
|
DB
|
<70
|
