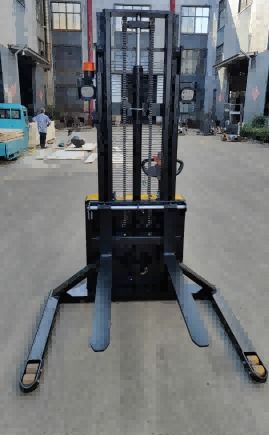

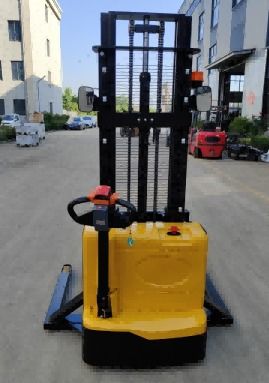

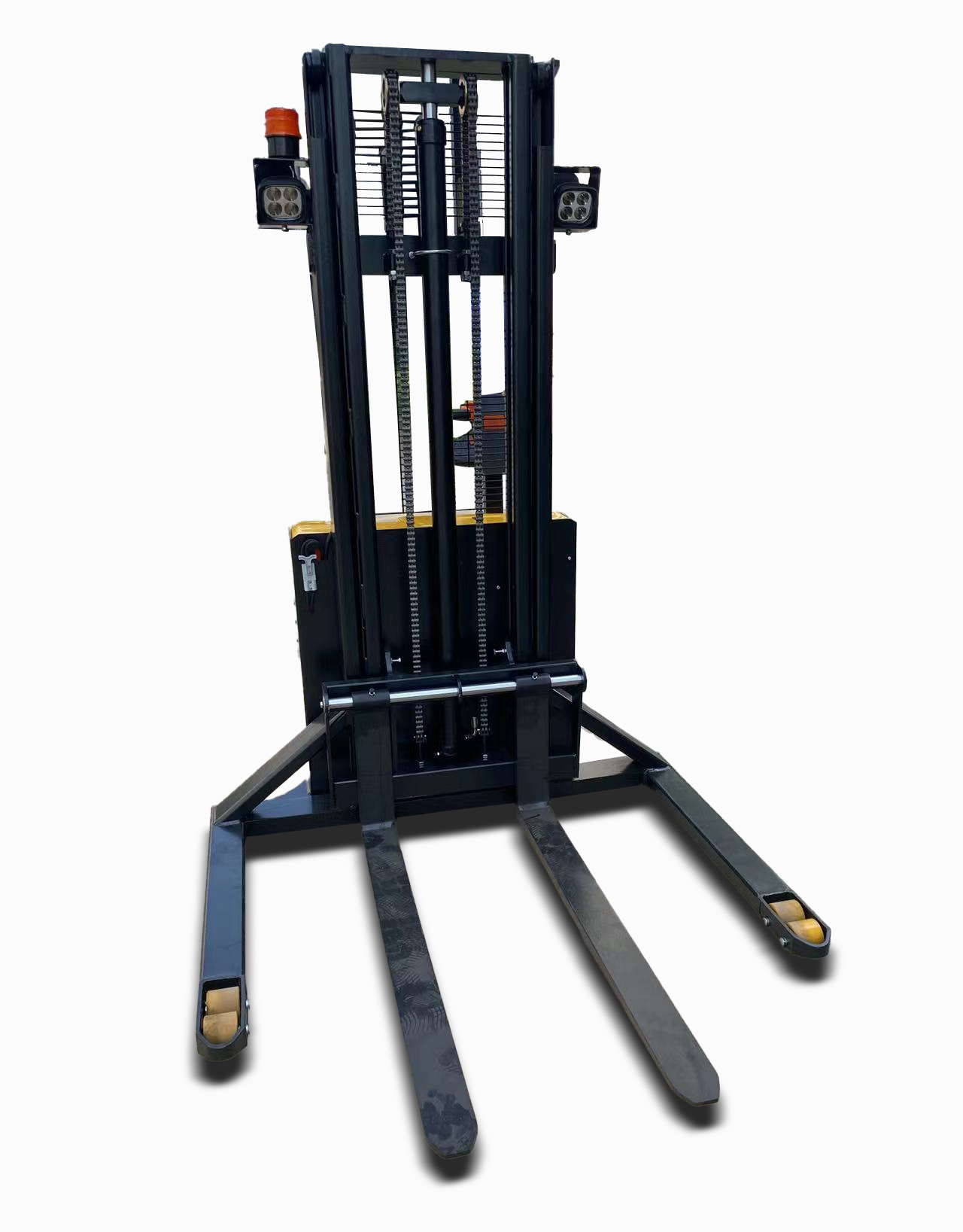

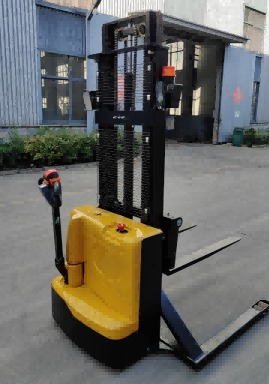

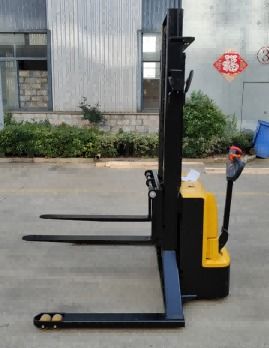

Electric Walkie Stacker 1.5 Ton 3m Lift Height with 24V Battery

المعلومات الأساسية

مكان المنشأ:	جيانغسو ، الصين ، CN ؛ JIA
اسم العلامة التجارية:	KAD

الحد الأدنى لكمية:	1
الأسعار:	$1,300-1,400

افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ

طول الشوكة:	1070ملم	عرض الشوكة:	550/680 ملم
مركز التحميل:	500mm	وزن الحمولة:	1500 كجم
جهد البطارية:	24 فولت	سعة البطارية:	80 أمبير
ارتفاع الحمولة:	3000mm	نوع الصاري:	2 مرحلة / 3 مرحلة
وضع القيادة:	ووكي ستير	مصدر الطاقة:	محرك العاصمة
ارتفاع الرفع الأدنى:	2080 مم	الأبعاد العامة:	1770x850x2080mm
وزن:	553 كجم	سرعة القيادة:	5.0/5.0 مم/ثانية
سرعة رفع:	140/135 مم/ثانية
إبراز:	Electric pallet stacker 1.5 ton,Walkie stacker 3m lift height,24V battery electric stacker , Walkie stacker 3m lift height , 24V battery electric stacker

Extremely Safe and Stable Stacker 1.6ton 3.5m 4m Full Electric Walkie Stacker With Straddle Legs and Forged Fork

Product Specifications

Attribute	Value
Condition	New
Fork Length	1070mm/customized
Fork Width	550/680mm/customized
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability	Indoor Flooring
Load Center	500 mm
Load weight	1500KG
Battery	24V/80Ah
Battery type	Lead acid battery
Load height	3000mm
Warranty	1 Year/2000 Working Hours, 1 Year
Mast	2 Stage/3 Stage
Loading Capacity	1500kg
Drive mode	Walkie Steer
Power Source	DC MOTOR
Core Components	Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine
Min. Lifting Height	2080mm
Overall Dimensions	1770(L)850(w)2080(h)
Weight (KG)	553 kg

The walkie stacker is easy to operate, requiring only basic training to master, making it suitable for various workers. Its compact size and light weight allow it to maneuver flexibly in tight spaces, ideal for use in warehouses and factories. It boasts strong safety features, including emergency brakes, speed limiters, and anti-slip functions, ensuring operator safety.

Technical Specifications

Model	CDDW10 CDDW15
Drive system	Battery
Driving mode	Walkie
Load Capacity	Q	KG	1000
Load Center	C	MM	500
Weight (With battery)	KG			480/495/515/535
Wheels Material	PU
Lifting Height	H3	MM	1600/2000/2500/3000/4000
Lowest Mast	H1	MM	2080/1580/1830/2080/1580
Max.Height when operating	H4	MM	2080/2730/3230/3730/4750
Min.Height of Fork	H13	MM	≤90
Length	L1	MM	1770
Width	B1	MM	850
Fork Length	L	MM	1070
Wheelbase	Y	MM	1250
Fork Outside Width	B5	MM	680
Fork Inside Width		MM	305
Min.Turning Radius	WA	MM	1390
Driving Speed (Empty/Full Load)		MM/S	5.0/5.0
Lifting Speed (Empty/Full Load)		MM/S	140/135
Descending Speed (Empty/Full Load)		MM/S	150/155
Max.Gradient (Empty/Full Load)		°	7/5
Brake	Electromagnetic brake
Driving Motor		KW	DC/0.75
Lifting Motor		KW	DC/2.2
Battery Capacity		V/Ah	24/80/100;Li/gel

Key Features

Uses Curtis controller, serviceable by any forklift service company worldwide
Integrated charger provides flexibility for modern supply chain needs
Maintenance-free batteries requiring no water addition
High strength forged fork for durability
Durable 3-stage mast supporting heavy loads up to 4-4.5m
Safety features including emergency brakes and speed limiters
Night operation lights for low-light environments
Reverse rearview mirror and buzzing sound for enhanced safety

Control Handle Specifications

Name: Control Handle
Brand: KAD
Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD sensitively. Uses Curtis brand accelerator to ensure safe operation.
