Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width

Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width
Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width
المعلومات الأساسية
الحد الأدنى لكمية: 1
الأسعار: 4403
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
رقم النموذج: CDD1550 سعة التحميل: 1-1.5 طن
مركز التحميل: 500mm ارتفاع ارتفاع: 5000mm
سعة البطارية: 24 فولت / 210 أمبير عرض الشوكة: 850mm
تحول دائرة نصف قطرها: 1738/2099mm طول الشوكة: 1070ملم
الوزن الإجمالي: 1000.000 كجم محرك القيادة: 1.2 كيلو واط
رفع محرك: 2.2 كيلوواط سرعة القيادة: 4 كيلومتر في الساعة
الانحدار: 3 ° / 5 ° حجم الإطارات: 300/250 ملم
الحجم الكلي: 2170*1570*2100 مم
إبراز:

500mm Load Center Electric Pallet Stacker,1070mm Fork Length Electric Stacker,850mm Fork Width Electric Forklift

,

1070mm Fork Length Electric Stacker

,

850mm Fork Width Electric Forklift

Wonderful Full Platform Electric Stacker with 5m Lifting Height
Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width 0

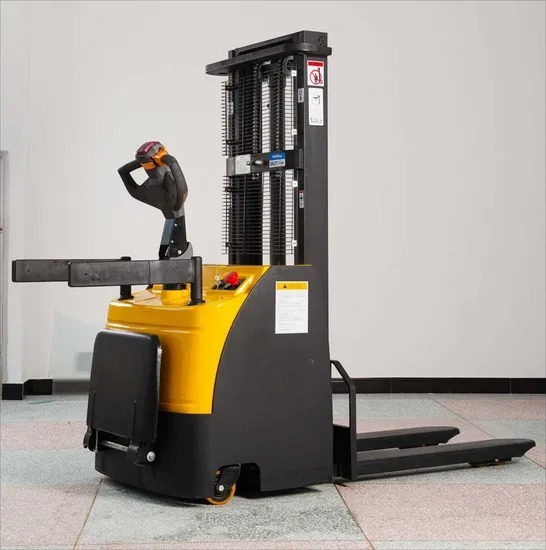

The Wonderful Full Platform Electric Stacker with 5m Lifting Height is designed for efficient loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control capabilities, this stacker offers high safety performance. It's particularly suitable for operations in narrow passages and confined spaces, capable of working in ship cabins, carriages, and containers for palletized goods handling.
Product Parameters
Model CDD1030 CDD1530
Load Capacity kg 1000 1500
Lifting Height mm 3000 3000
Load Center mm 500 500
Fork Size mm 1220*100*40 1220*100*40
Ground Clearance mm 30 30
Pedal Length mm 410 410
Handler Height mm 1490 1490
Outer Distance Between Forks mm 685 685
Inner Distance Between Forks mm 345 345
Tyre type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
The Min. Turning Radius mm 1500 1500
Driving Speed with Full Loads km/h 4 4
Gradient ° 3°/5° 3°/5°
Battery V/Ah 24V/210A 24V/210A
Driving Motor KW 1.2 1.2
Lifting Motor KW 2.2 2.2
Tyre Size mm 300/250 300/250
Overall Size mm 2170*1570*2100 2170*1570*2100
Weight kg 900 900
Reference Working Time h 6 6
Increased height each tonnage mm 1600/2000/2500/3000/3500 1600/2000/2500/3000/3500
Max height mm 2100/1600/1850/2100/2350 2100/1600/1850/2100/2350
Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width 1
Machine Parts
Control Handle
Brand: KAD
Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD movements with precision.
Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width 2 Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width 3

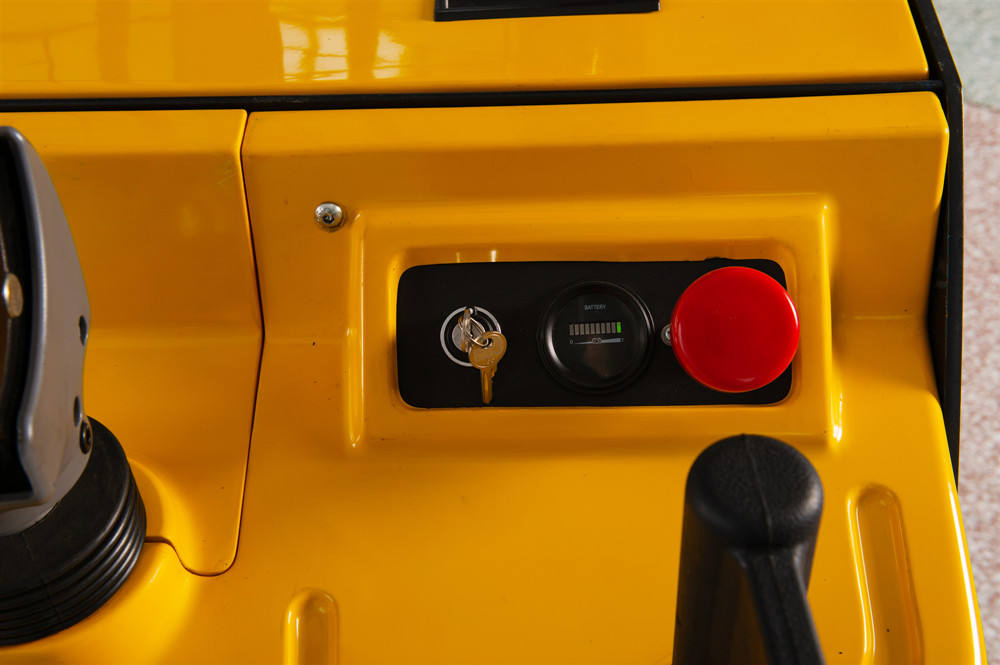

Operation Panel
Features a key, battery indicator, and emergency switch. The functional panel with beautiful design makes operation intuitive and efficient.
Machine Parts
Strong cylinder and chain system ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width 4 Full Platform Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 850mm Fork Width 5
Main Features
Side-positioned drive system with strong caster wheels ensures excellent stability and maneuverability.
Frequently Asked Questions
Q1. What is your terms of packing?
Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated.
Q3. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
  1. We keep good quality and competitive price to ensure our customers benefit
  2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
