24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation

24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation
24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation
المعلومات الأساسية
الحد الأدنى لكمية: 1
الأسعار: 4423
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
رقم النموذج: CDD2040 سعة التحميل: 1-2T
مركز التحميل: 500mm ارتفاع ارتفاع: 4000mm
سعة البطارية: 24 فولت / 210 أمبير وزن الحمولة: 2000 كجم
نوع الإطارات: عجلة PU مصدر الطاقة: محرك العاصمة
حجم الشوكة: 1220*100*40mm خلوص الأرض: 30mm
تحول دائرة نصف قطرها: 1500mm سرعة القيادة: 4 كم / ساعة
محرك القيادة: 1.2kw رفع محرك: 2.2kw
الحجم الكلي: 2170*1570*2100mm
إبراز:

24V/210ah Battery Electric Pallet Stacker,Load Center 500mm Electric Stacker,DC Motor Electric Forklift Stacker

,

Load Center 500mm Electric Stacker

,

DC Motor Electric Forklift Stacker

24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 0
Rated Capacity 2ton Rising Height 4m Electric Fork Lift Stacker
Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control capabilities, these stackers offer high safety performance. Ideal for operations in narrow passages and confined spaces, they can efficiently work in ship cabins, carriages, and containers for palletized goods handling.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre Type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased Height Each Tonnage 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max Height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm
Product Images

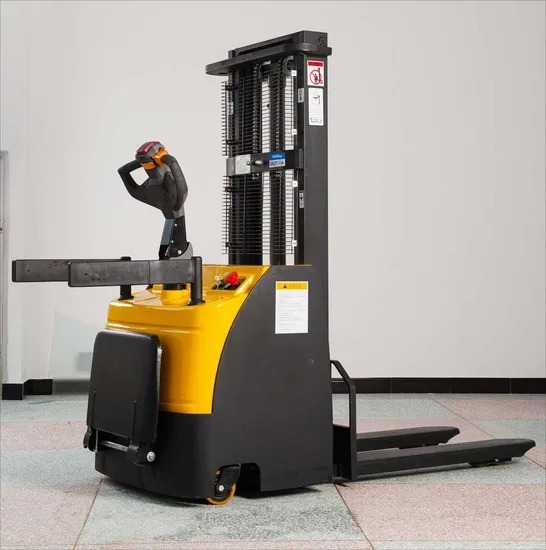

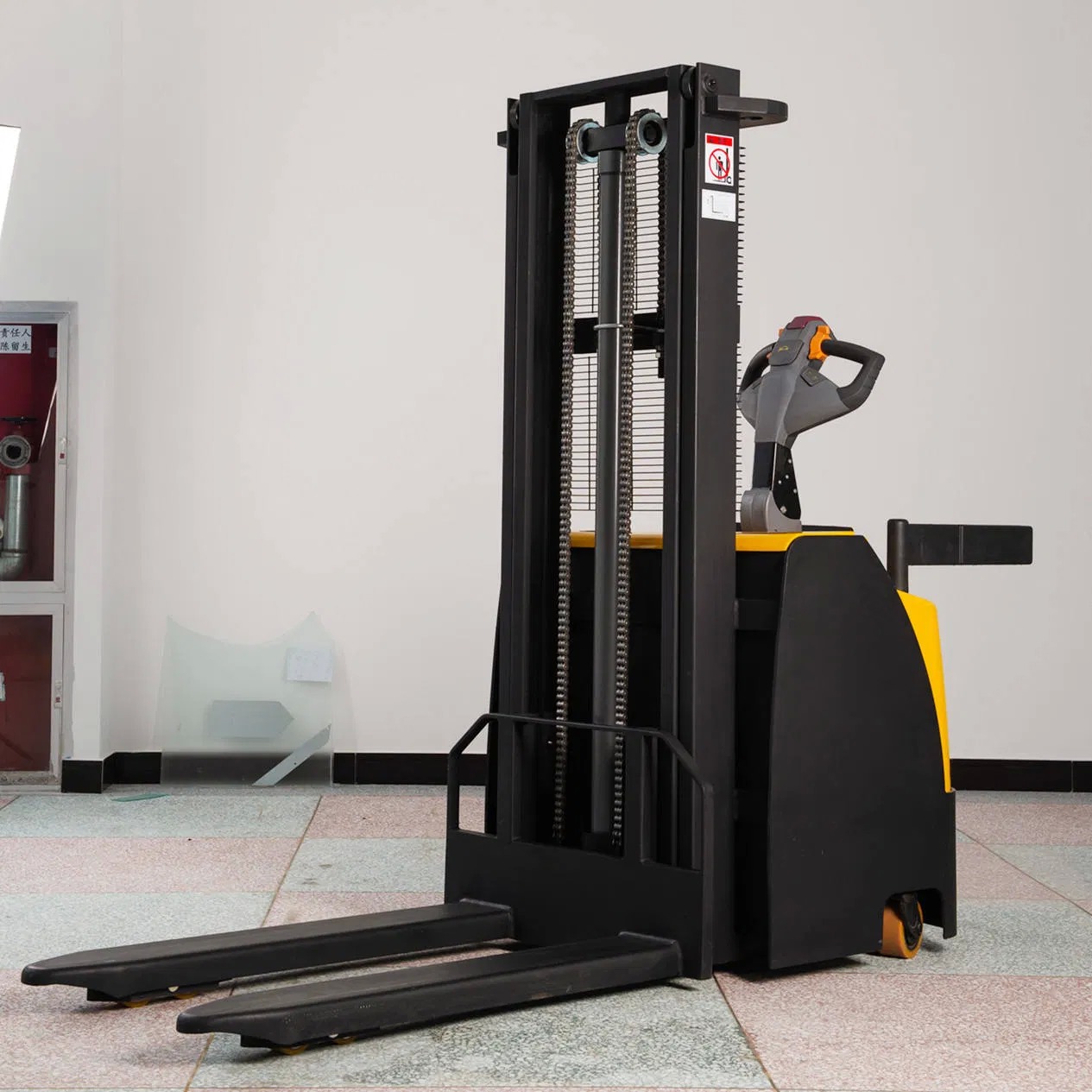

24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 1
Key Components
Control Handle
Brand: KAD - Domestic premium control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.
24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 2
Operation Panel
Features key controls, battery indicator, and emergency switch. The functional yet aesthetically designed panel enhances operational efficiency.
24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 3
Mast System
Equipped with strong cylinder and chain for smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.
24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 4
Drive System
Side-positioned drive system with robust casters ensures exceptional stability and maneuverability.
24V/210ah Battery Electric Pallet Stacker with Load Center 500mm and DC Motor for Efficient Narrow Aisle Operation 5
Frequently Asked Questions
Q1. What is your terms of packing?
A: Standard packaging includes paper wrapping and iron pallets. Custom branded packaging available upon authorization.
Q2. What is your terms of payment?
A: 30% deposit via T/T with 70% balance before delivery. Product photos provided before final payment. Other terms negotiable.
Q3. What is your terms of delivery?
A: Available options include EXW, FOB, CFR, CIF, and DDU.
Q4. How about your delivery time?
A: Standard lead time is 5-30 days after deposit receipt, varying by product specifications and order quantity.
Q5. Do you test all your goods before delivery?
A: Yes, we conduct 100% quality testing prior to shipment.
Q6. How do you maintain long-term business relationships?
  • Commitment to quality products at competitive prices
  • Treating every customer with respect and sincerity
