KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center

KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center
KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center
المعلومات الأساسية
الحد الأدنى لكمية: 1
الأسعار: 4503
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
رقم النموذج: CDD2050 سعة التحميل: 1-2T
مركز التحميل: 500mm ارتفاع ارتفاع: 5000mm
سعة البطارية: 24 فولت / 210 أمبير تحول دائرة نصف قطرها: 1738/2099mm
حجم الشوكة: 1220*100*40mm خلوص الأرض: 30mm
طول الدواسة: 410mm ارتفاع معالج: 1490 ملم
مسافة الشوكة الخارجية: 685 ملم مسافة الشوكة الداخلية: 345mm
سرعة القيادة: 4 كم / ساعة محرك القيادة: 1.2kw
رفع محرك: 2.2kw الحجم الكلي: 2170*1570*2100mm
وزن: 900 كجم وقت العمل: 6H
إبراز:

500mm Load Center Electric Pallet Stacker,1738/2099mm Turning Radius All-Electric Pallet Stacker,DC Motor Electric Forklift

,

1738/2099mm Turning Radius All-Electric Pallet Stacker

,

DC Motor Electric Forklift

KAD Hight Lift All-Electric Pallet Stacker 2000kg Capacity 5m Lift
KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center 0
Product Description
The KAD Hight Lift All-Electric Pallet Stacker is designed for efficient loading, stacking, and short-distance palletizing of goods. With its simple structure and flexible operation, it offers excellent micro-operability and high safety performance. Ideal for operations in narrow passages and confined spaces, this stacker can access ship cabins, carriages, and containers for loading, unloading, and handling of palletized goods.
Product Parameters
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220*100*40 mm 1220*100*40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
The Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170*1570*2100 mm 2170*1570*2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased height each tonnage 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm

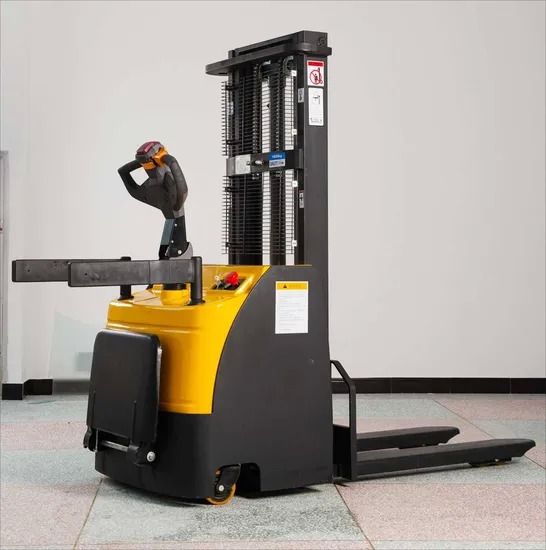

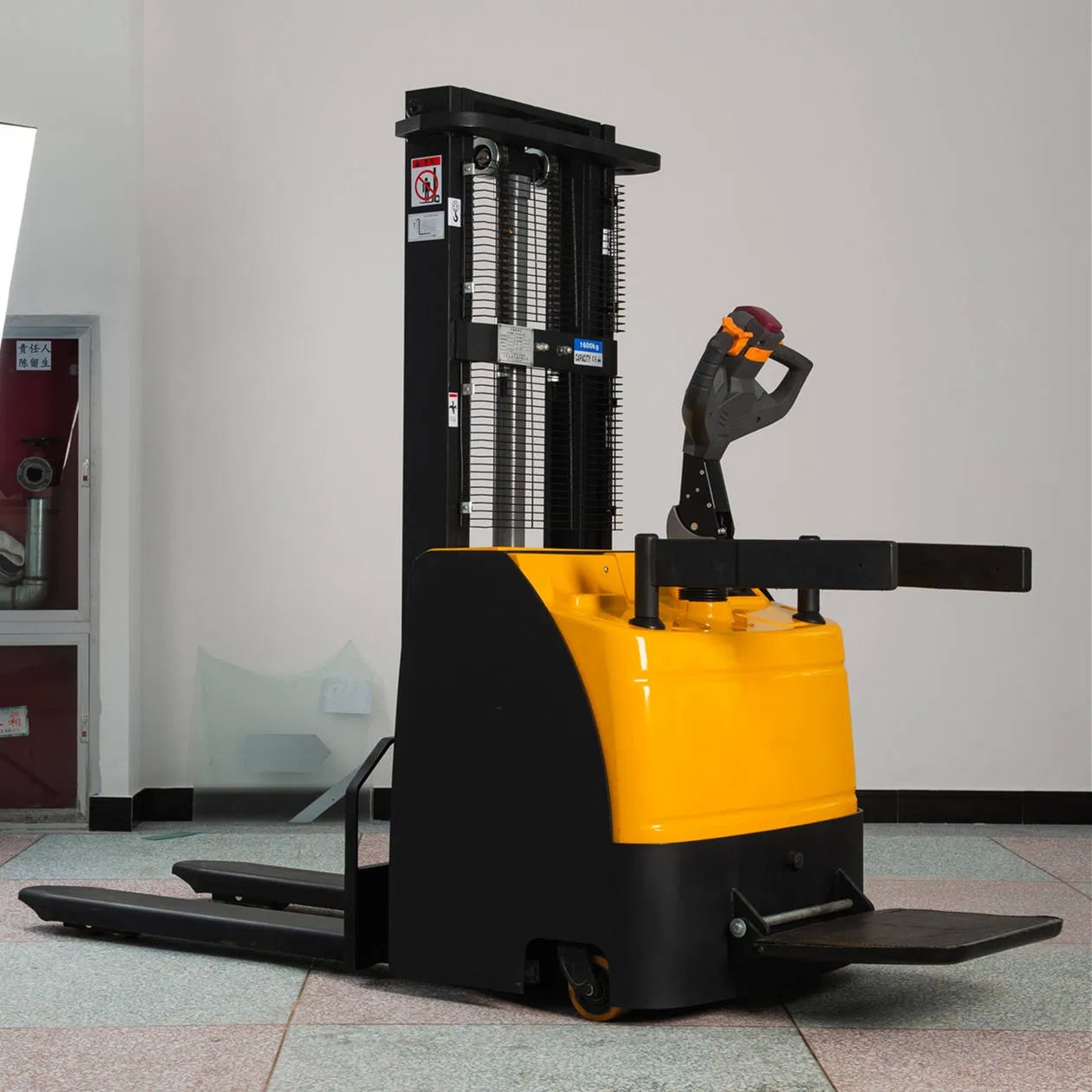

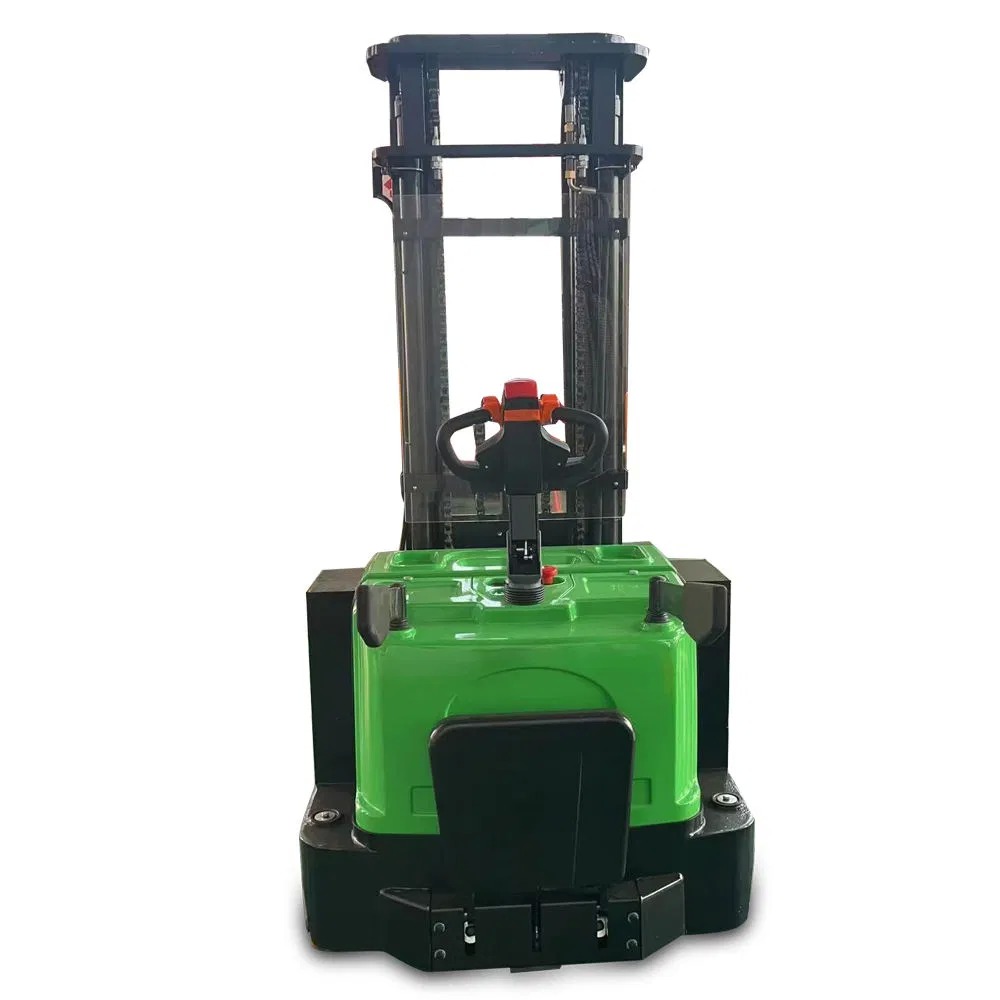

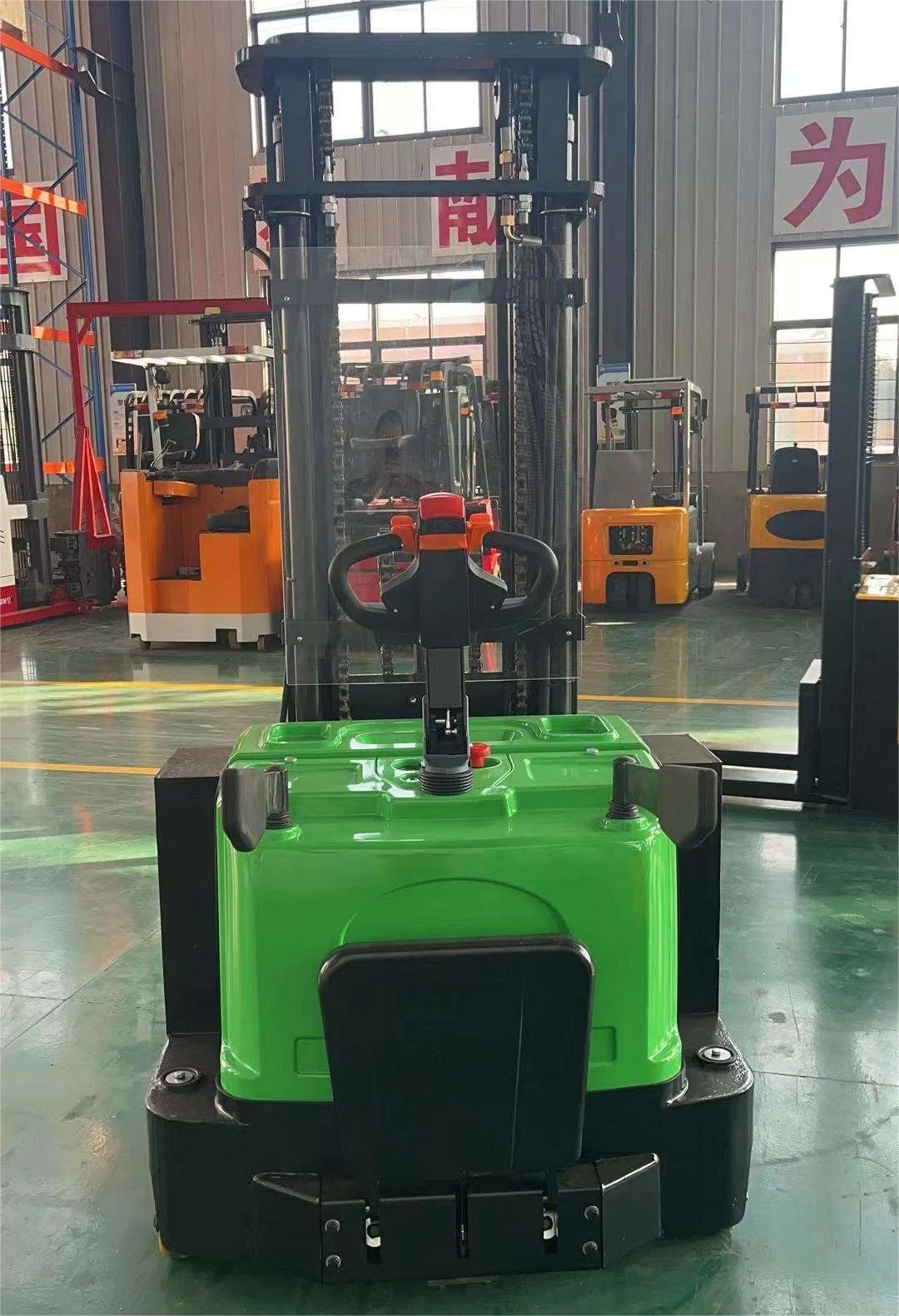

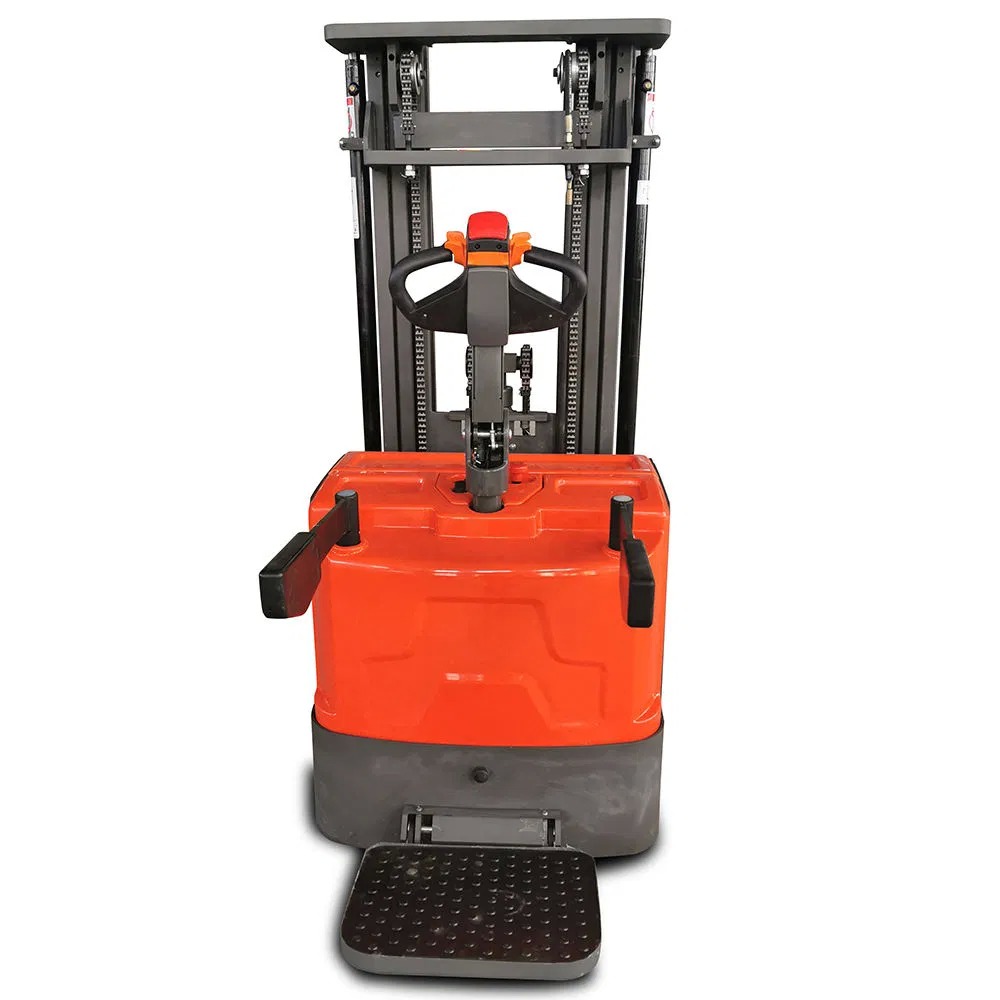

Detailed Photos
KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center 1
Machine Parts
Control Handle
Brand: KAD
Domestic famous control handle with functional buttons that can sensitively control UP/DOWN, FORWARD/BACKWARD movements.
KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center 2 KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center 3
Operation Panel
Features a key, battery indicator, and emergency switch. The functional panel with beautiful design makes work joyful and easy.
Strong Cylinder and Chain
Ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center 4 KAD All-Electric Pallet Stacker with 2000kg Capacity 5m Lift DC Motor and 500mm Load Center 5
Main Features
Side-positioned drive system and strong caster for easy stability management.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
