| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | KAD |
| إصدار الشهادات: | CE |
| رقم الموديل: | CPD |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | 6000-8000 |
| تفاصيل التغليف: | البليت الحديد + فيلم من البلاستيك |
| وقت التسليم: | 10 أيام عمل |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 50 وحدة / شهر |
| سعة التحميل: | 1000-3500 كجم | ارتفاع الحمولة: | من 3000 مم إلى 6000 مم |
|---|---|---|---|
| بطارية: | 12 فولت/80 أمبير | يكتب: | رافعة فوكليت ديزل |
| لون: | طلب العميل | ميزة: | سهولة التشغيل والراحة والسلامة |
| تطبيق: | صناعة | إصدار الشهادات: | CE |
| نوع الطاقة: | طاقة الديزل | ||
| إبراز: | economical diesel forklift,low fuel consumption forklift,SME diesel forklift,low fuel consumption forklift,SME diesel forklift |
||

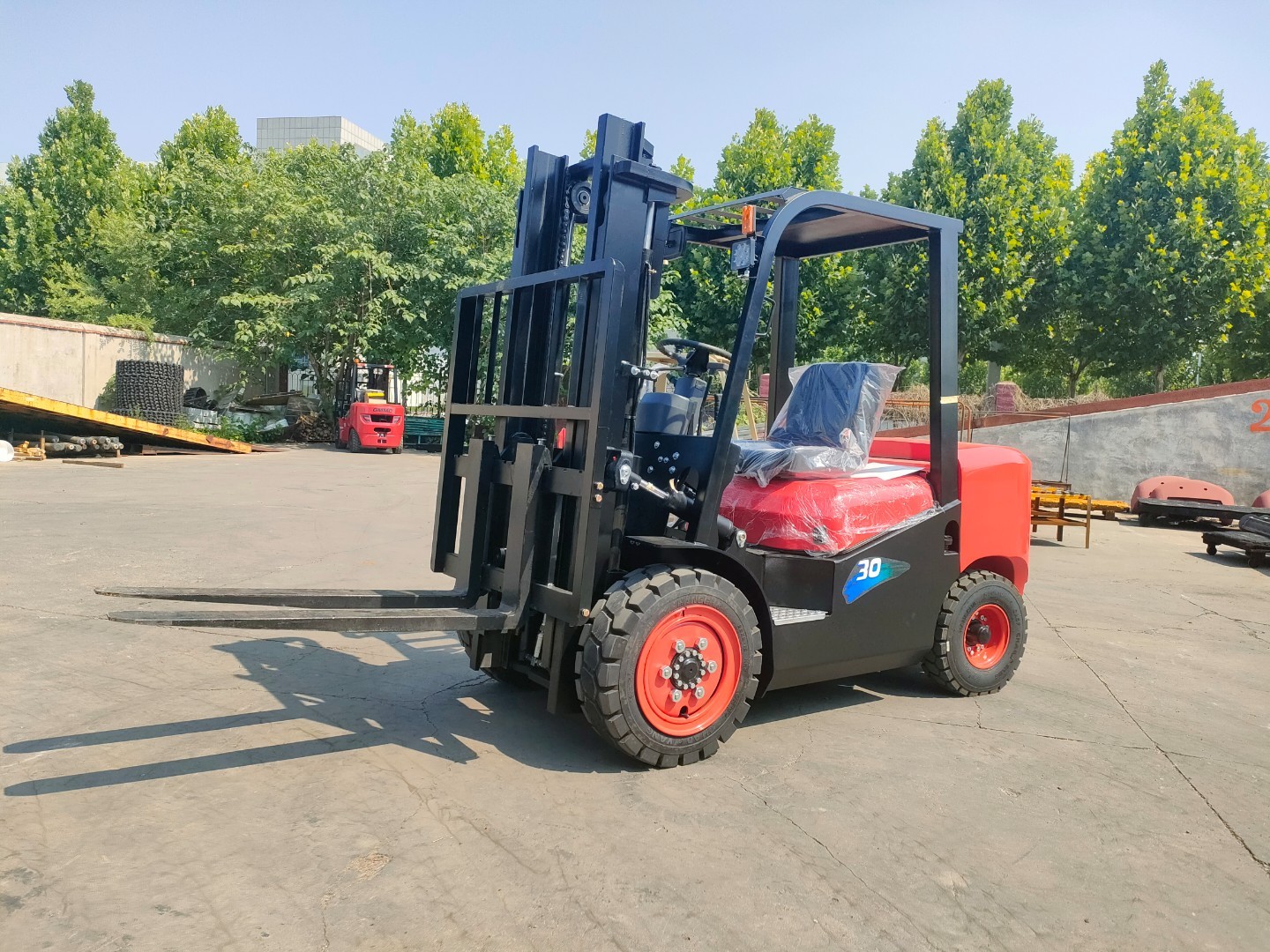

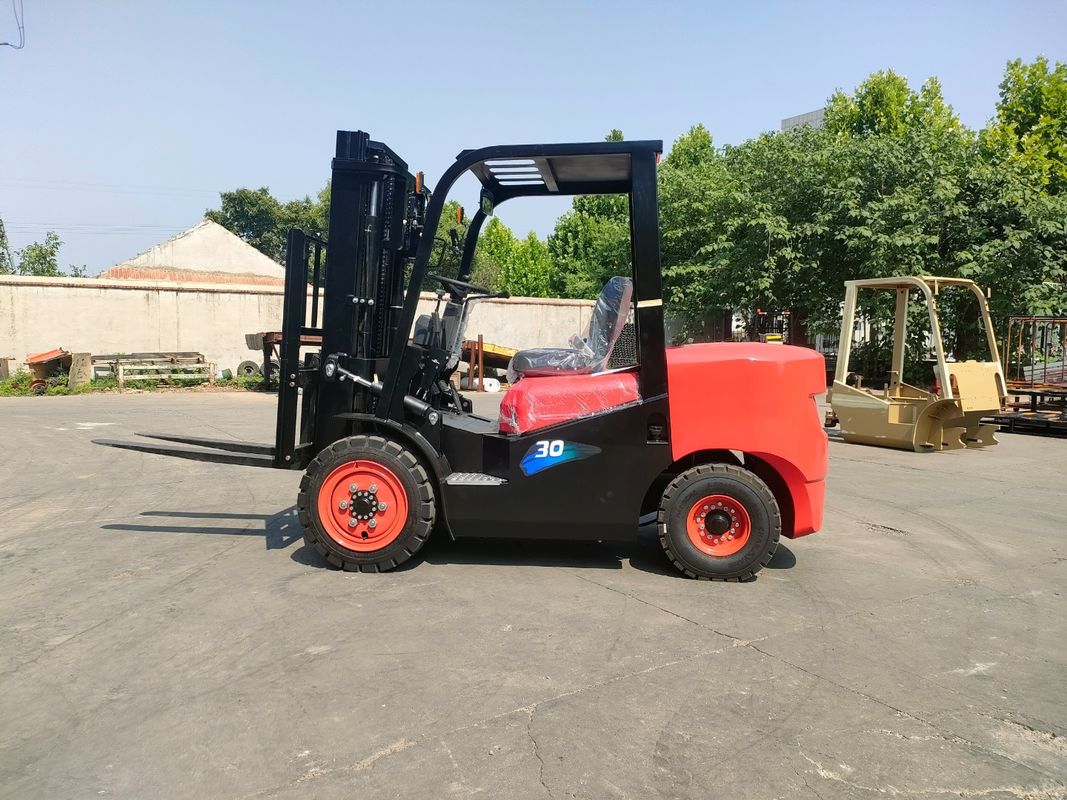

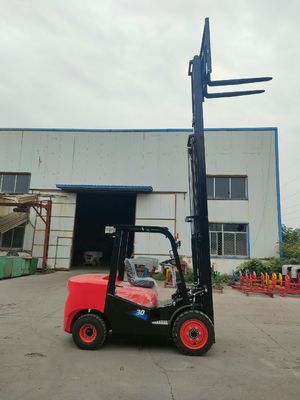

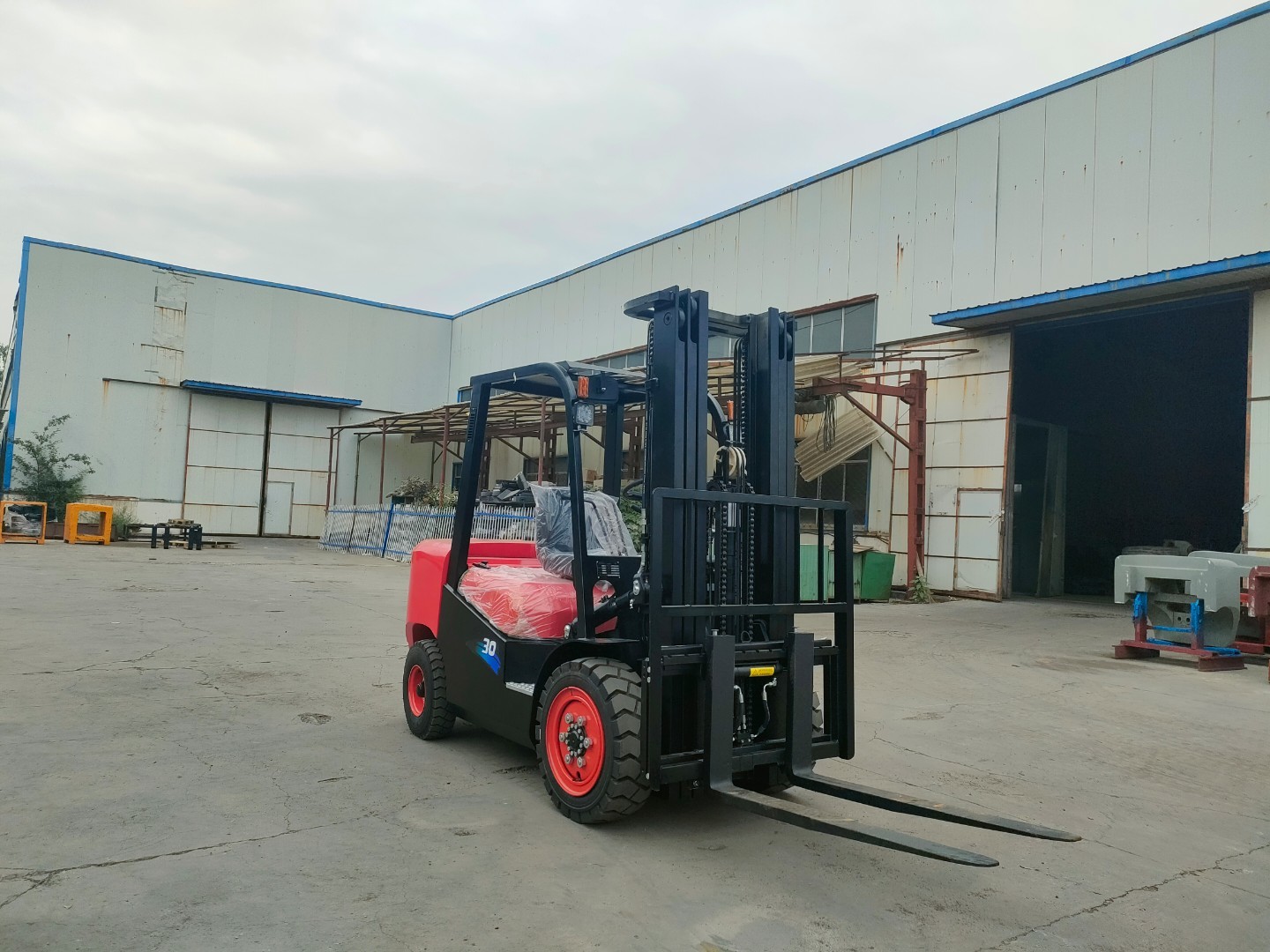

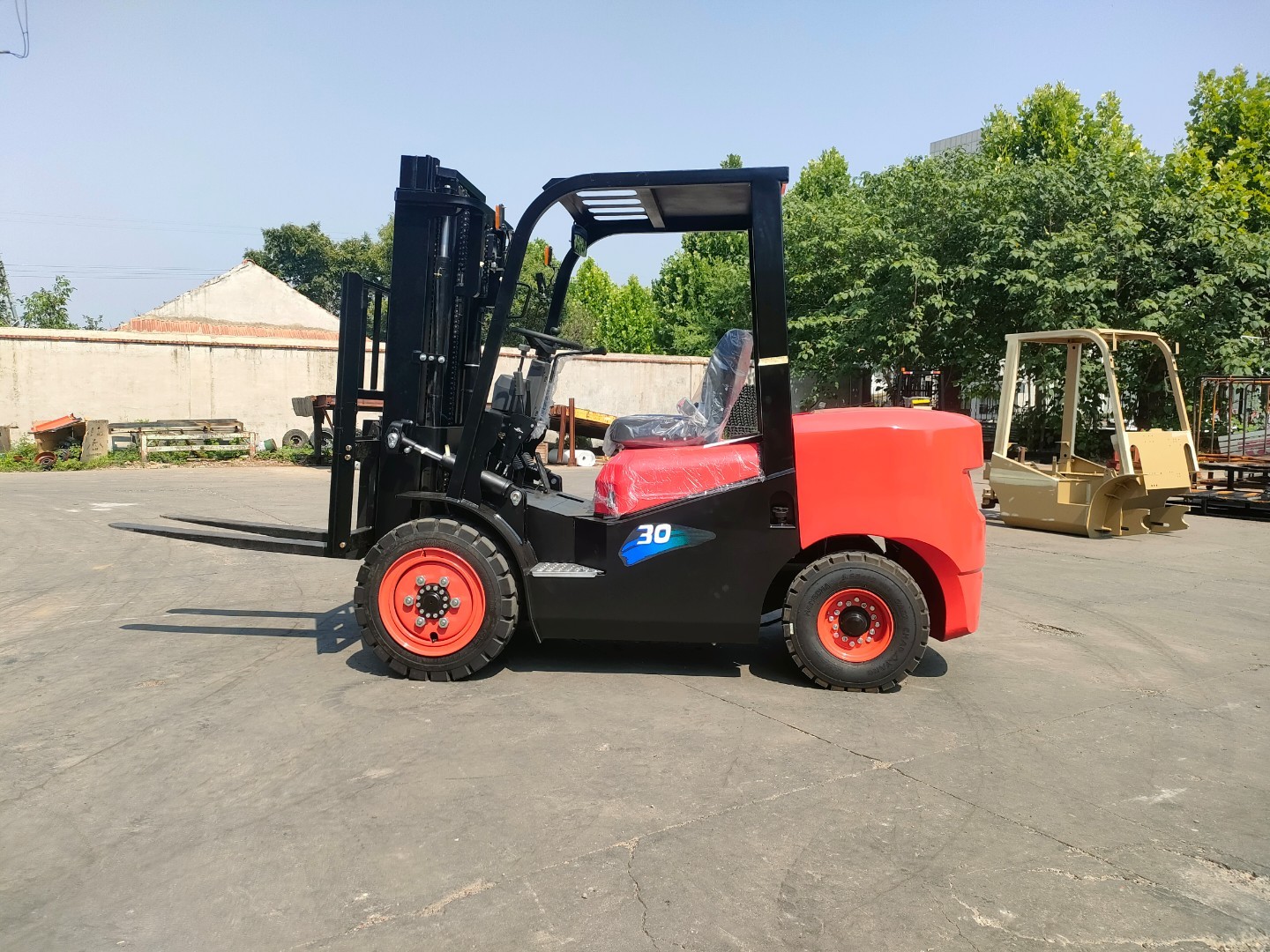

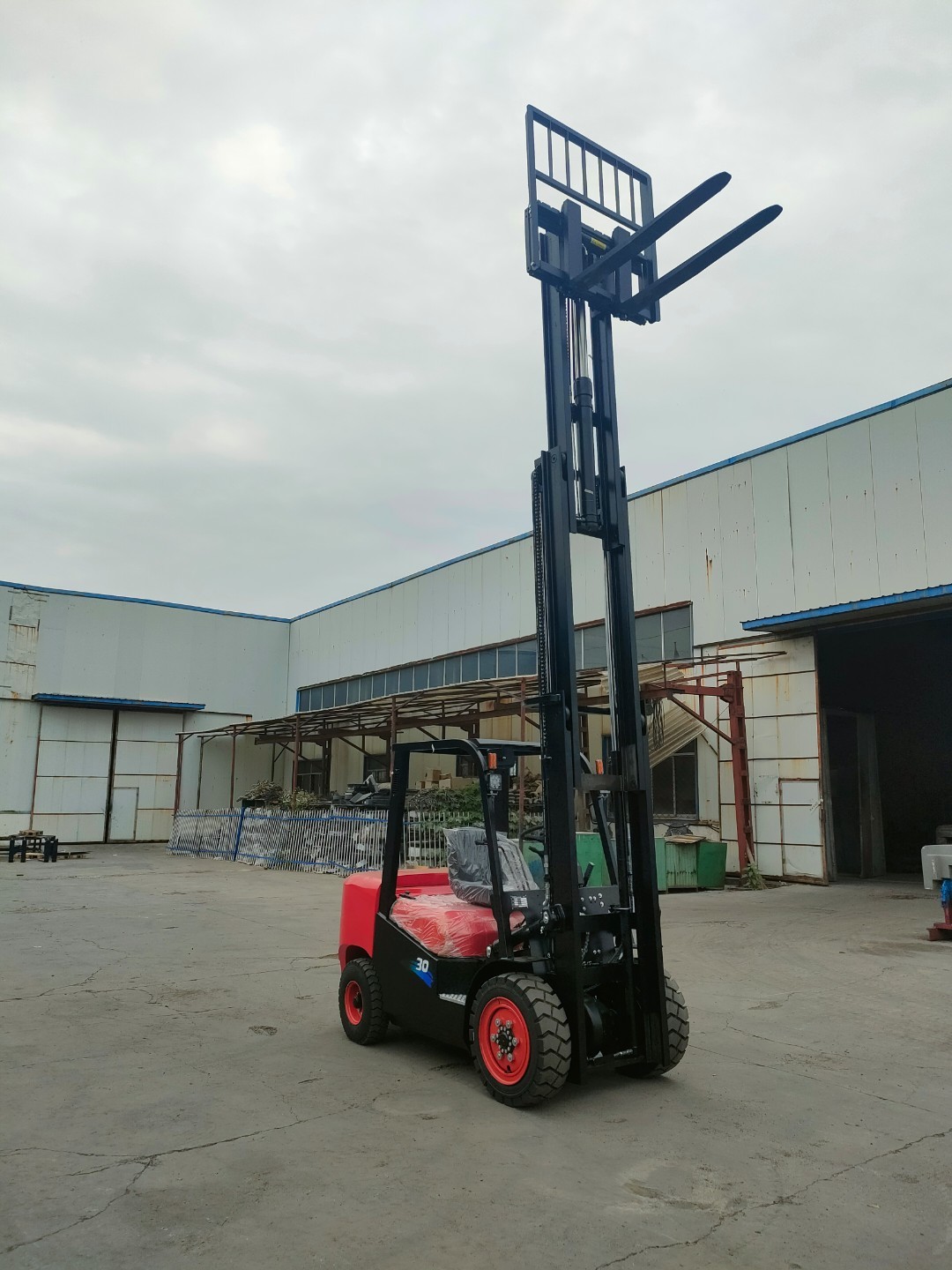

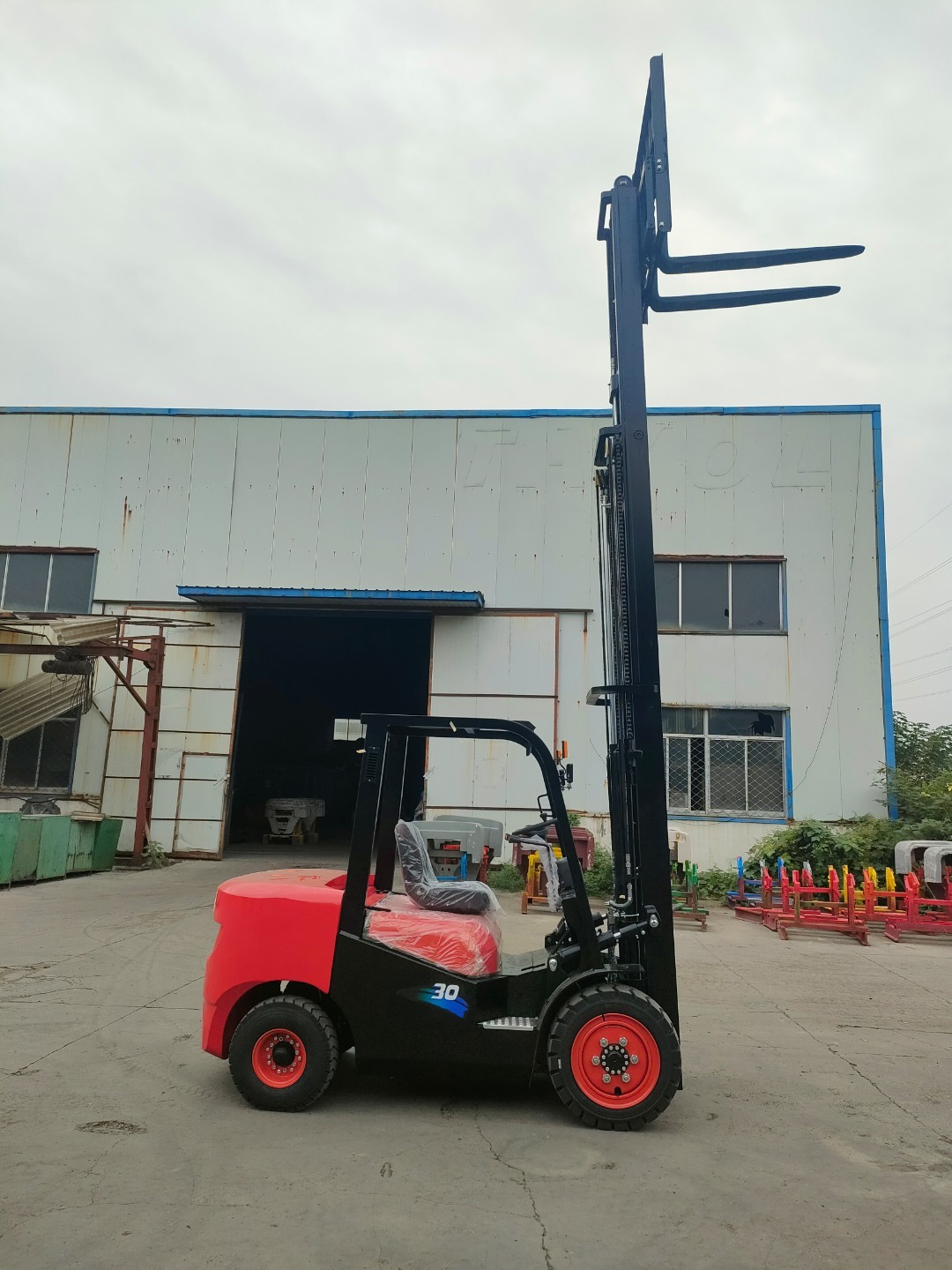

Economical Diesel Forklift Low Fuel Consumption High ROI Ideal for SMEs
Why buy multiple machines for different tasks? This multi-role diesel forklift is the ultimate cost-effective solution, effortlessly adapting to your evolving business needs.
Quick-Attach System (Optional): Standard configuration allows for easy integration of various attachments like side-shifters, fork positioners, or clamps, transforming its function in minutes.
All-Weather Capability: Comes standard with excellent ground clearance, sealed brakes, and powerful LED work lights, ready to tackle both indoor warehouse organizing and outdoor yard stacking.
Simplified & Reliable Power: Utilizes a proven, widely-available engine platform. This design prioritizes reliability and ease of maintenance, keeping lifetime ownership costs exceptionally low.
Essential Safety, Zero Frills: Focuses on core safety with a robust welded frame, reliable overload protection, and excellent view mast—eliminating expensive, non-essential features to deliver the best value.
|
Model
|
|
CPC30/CPCD30
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Power Type
|
|
Diesel
|
|
Max, Lifting Speed (No-Load / Full-Load)
|
mm/s
|
450 / 440
|
|
Max. Driving Speed (Full-Load /No-Load)
|
km/h
|
18 / 20
|
|
Max. Towing Capacity(Full-Load/No-Load
|
kN
|
15.5 / 10.5
|
|
Gradeability(Full-Load/No-Load)
|
%
|
15 / 20
|
|
Lifting Height
|
mm
|
3000
|
|
Free Lift Height
|
mm
|
80
|
|
Mast Tilting Angle (Forward-Backward)
|
(°)
|
6 / 12
|
|
Min.Turning Radius
|
mm
|
2530
|
|
Min.Right Angle Aisle Width
|
mm
|
2050
|
|
Min. Ground Clearance
|
mm
|
135
|
|
Overall Length (including Fork)
|
mm
|
4170
|
|
Overall Width
|
mm
|
1230
|
|
Overall Height (Mast Lowered)
|
mm
|
2110
|
|
Overall Height (Mast Extended)
|
mm
|
4270
|
|
Overall Height to Overhead
|
mm
|
2105
|
|
Front Overhang
|
mm
|
465
|
|
Wheelbase
|
mm
|
1760
|
|
Front Tread
|
mm
|
1000
|
|
Rear Tread
|
mm
|
970
|
|
Front Wheel
|
mm
|
28*9-15
|
|
Rear Wheel
|
mm
|
6.50-10
|
|
Fork Width
|
mm
|
122
|
|
Fork Thickness
|
mm
|
45
|
|
Backrest Height
|
mm
|
1225
|
|
Fork Length
|
mm
|
1220
|
|
Engine Model
|
|
C490BPG
|
|
Rate Power
|
KW
|
40
|
|
Rotate Speed at Rate Power
|
rpm
|
2650
|
|
Max. Torque
|
Nm
|
162
|
|
Rotation Speed at Max. Torque
|
rpm
|
1800 ~ 1900
|
|
Type of Power Shift
|
|
Mechanical / Hydraulic
|
|
Curb Weight
|
kg
|
4100
|
![]()
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
