| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | KAD |
| إصدار الشهادات: | CE/ISO9001 |
| رقم الموديل: | CDD20 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | $7199 |
| تفاصيل التغليف: | البليت الحديد + فيلم من البلاستيك |
| وقت التسليم: | 15 يوم عمل |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على العرض: | 50 وحدة / شهر |
| رقم الموديل: | CDD20 | سعة التحميل: | 1-2 طن |
|---|---|---|---|
| مركز التحميل: | 500 ملم | ارتفاع ارتفاع: | 1-10 م |
| سعة البطارية: | 24V / 280AH | حجم الشوكة: | 1220*100*40mm |
| خلوص الأرض: | 30 ملم | تحول الشعاع: | 1500 ملم |
| سرعة القيادة: | 4 كم / ساعة | الانحدار: | 3 ° / 5 ° |
| محرك القيادة: | 0.8 كيلو واط | رفع محرك: | 0.8 كيلو واط |
| حجم الإطارات: | 300/250mm | الحجم الكلي: | 2570*1390*2200 مللي متر |
| وزن: | 2800 كجم | ||
| إبراز: | stand-on electric reach truck with side-shift,electric pallet stacker with EPS buffer,narrow aisle warehouse reach truck,electric pallet stacker with EPS buffer,narrow aisle warehouse reach truck |
||

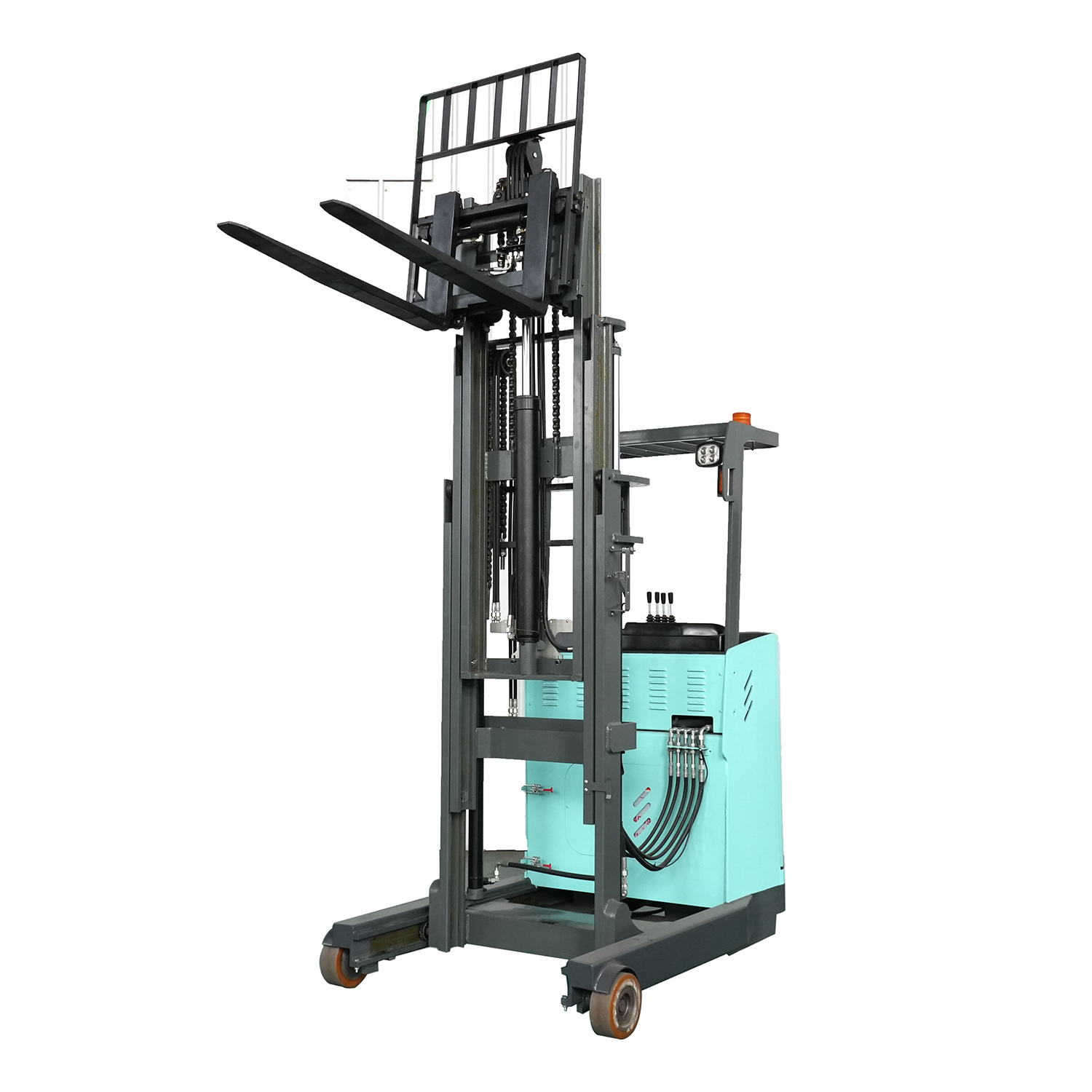

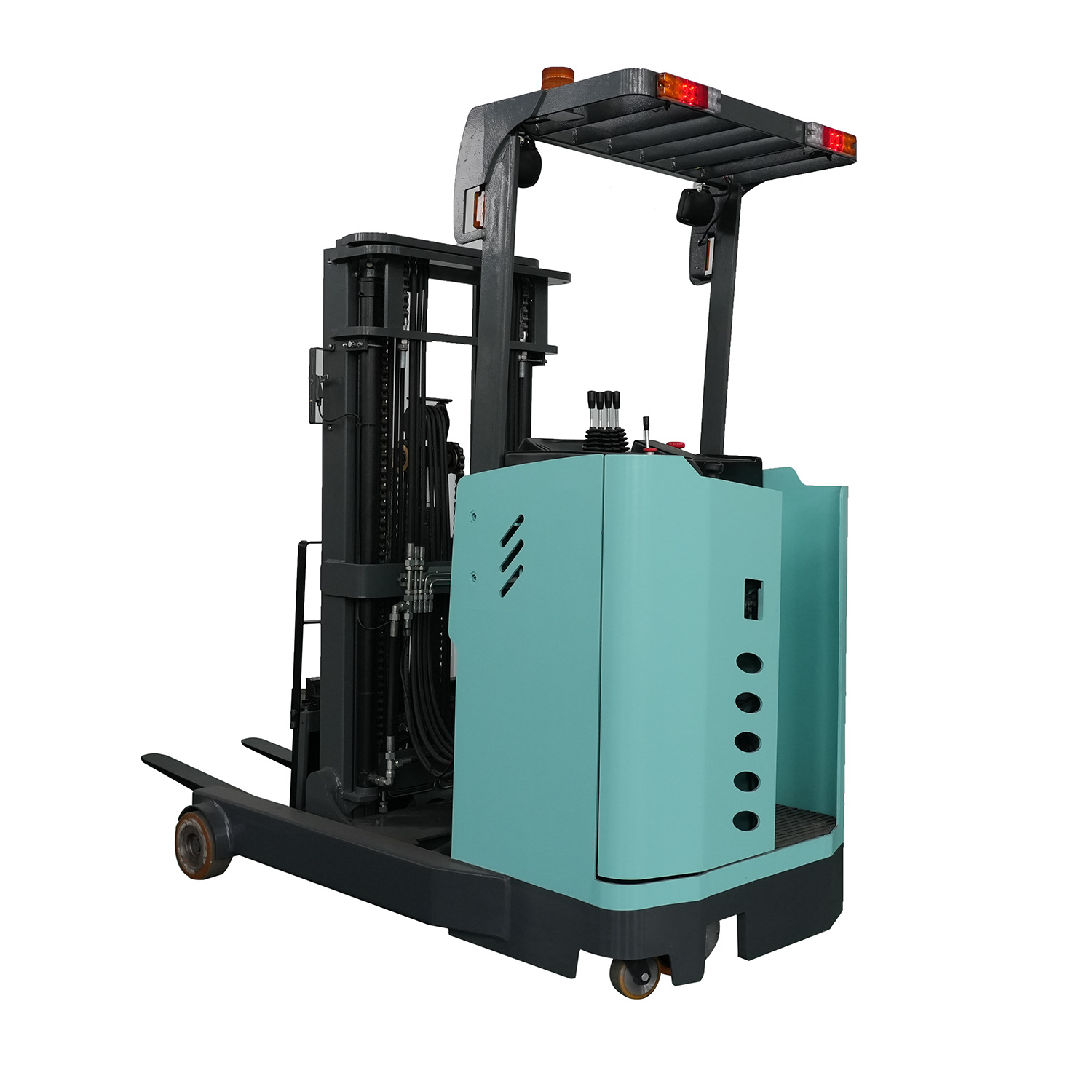

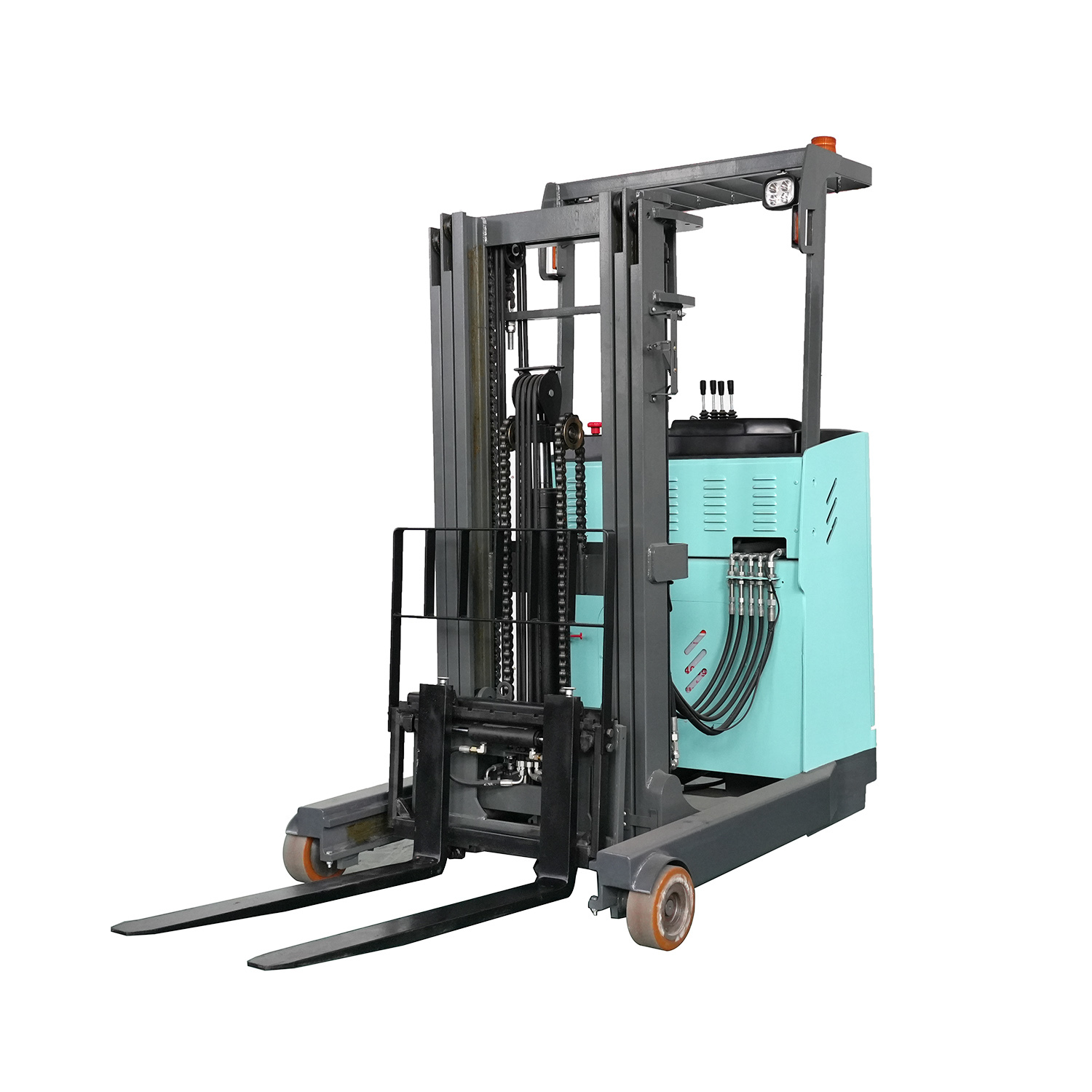

The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Load capacity at the highest point
|
kg
|
1000
|
1000
|
|
Weight
|
kg
|
2500
|
2800
|
|
Overall length (forks retracted)
|
mm
|
2570
|
2570
|
|
Overall width
|
mm
|
1100/1390
|
1100/1390
|
|
Static height of gantry
|
mm
|
2100
|
2100
|
|
Height of roof rack
|
mm
|
2200
|
2200
|
|
Moving forward distance
|
mm
|
600
|
600
|
|
Ground clearance
|
mm
|
45
|
45
|
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
|
Maximum gradient with full load
|
%
|
5
|
5
|
|
Load centre distance
|
mm
|
500
|
500
|
|
Type specification of travelling motor
|
-
|
ZQD13-1C
|
ZQD13-1C
|
|
Travelling motor 1min working current
|
A
|
195
|
195
|
|
Battery capacity
|
-
|
280Ah/24V
|
280Ah/24V
|
